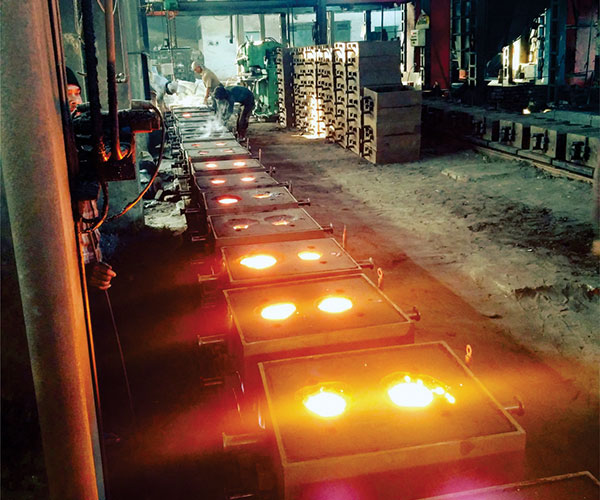

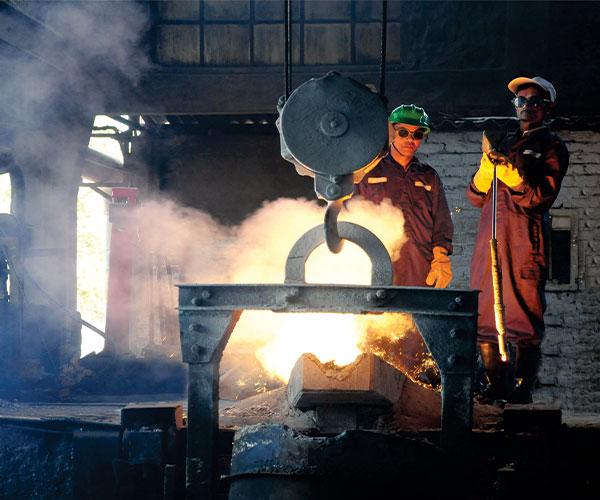

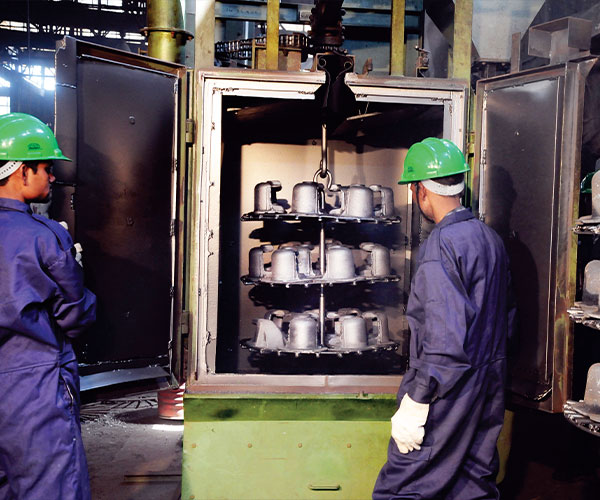

Casting Foundry
Casting Foundry
Casting Foundry
Casting Foundry

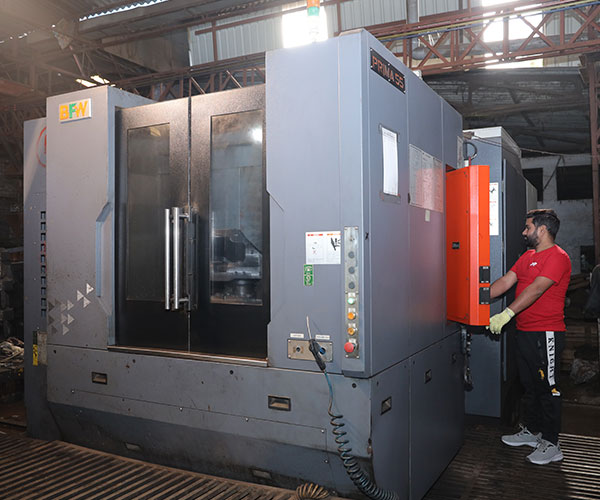

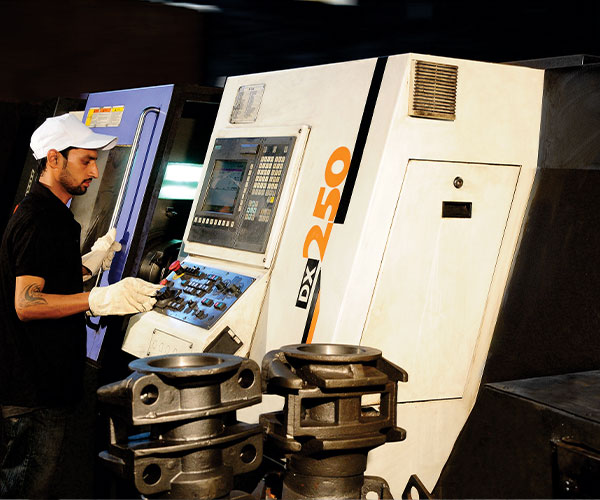

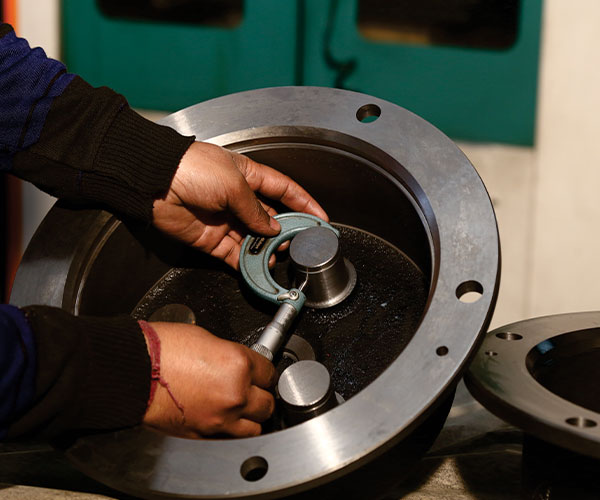

Machine Shop
Machine Shop
Machine Shop
Machine Shop
Machine Shop

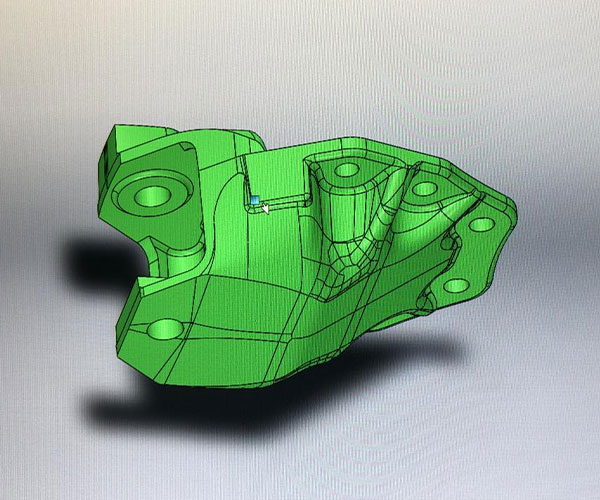

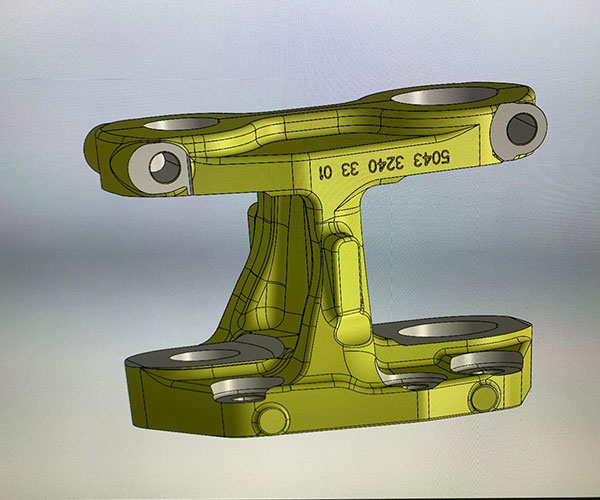

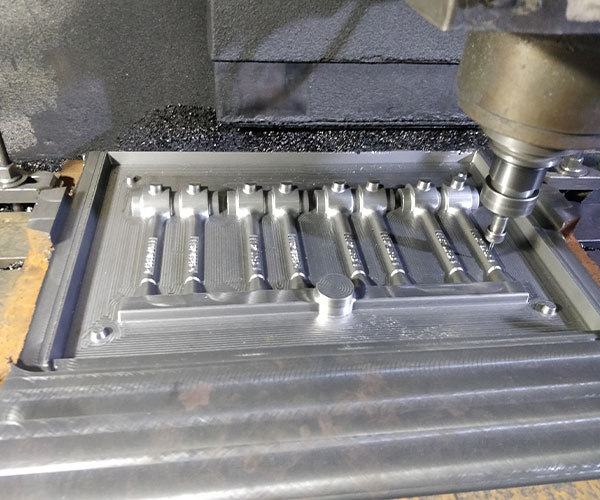

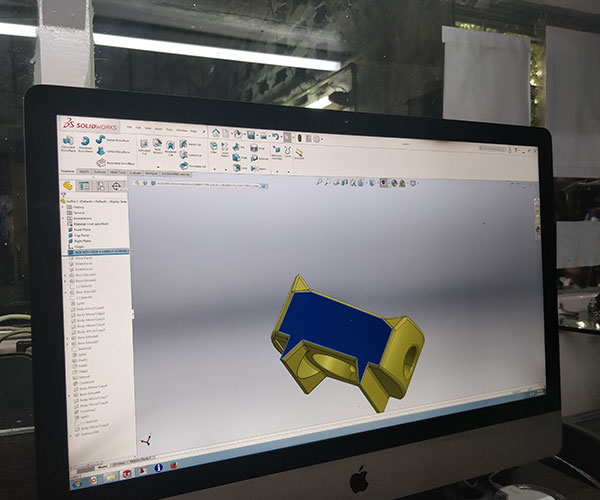

New Product Development
New Product Development
New Product Development
New Product Development

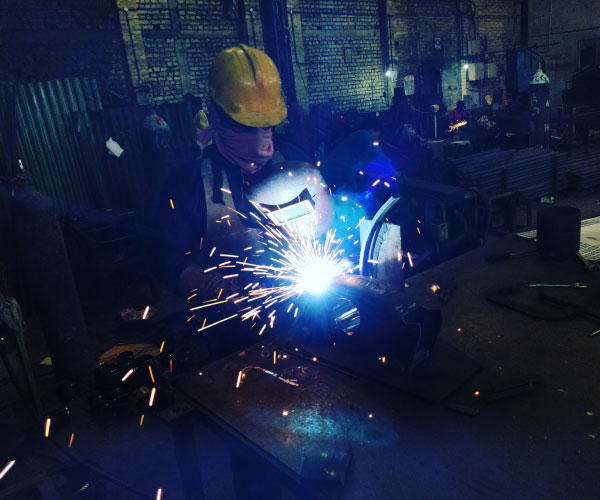

Weld Shop

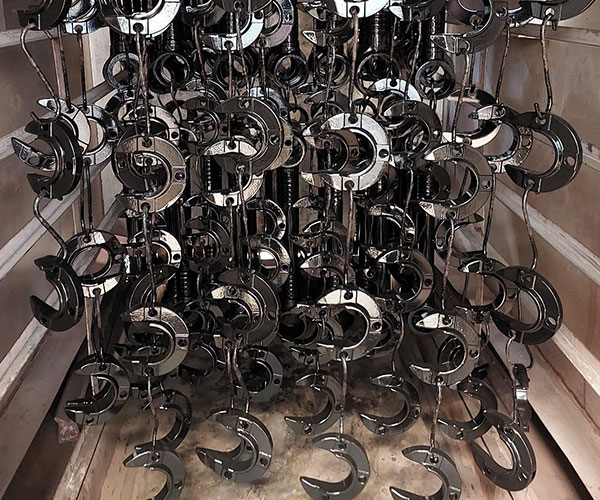

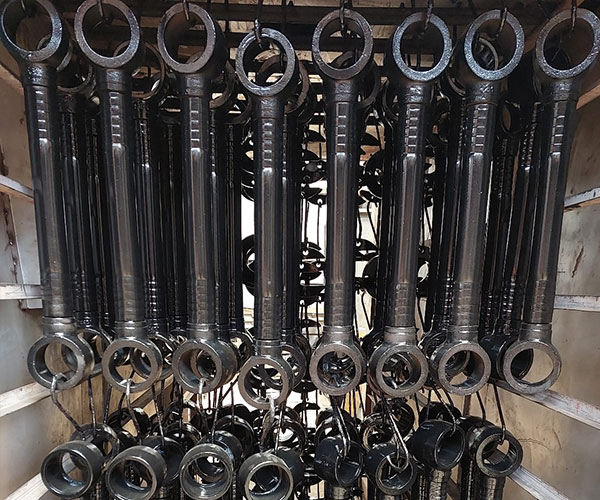

Paint Shop
Paint Shop
| Production Area | Total 15,000 sqm |
|---|---|
| Annual Capacity | 10,000 Ton |
| Materials | Grey Cast iron according to DIN 1561 (EN-GJL-250....EN-GJL-300) Nodular graphite cast iron according to DIN 1563 (EN-GJS-400.....EN-GJS-550) Alloy Steel casting according to DIN GS52, GS20 Mn5 |
| Melting Process | 1 x 1 Ton medium frequency induction furnace 2 x 0.5 Ton medium frequency induction furnace |

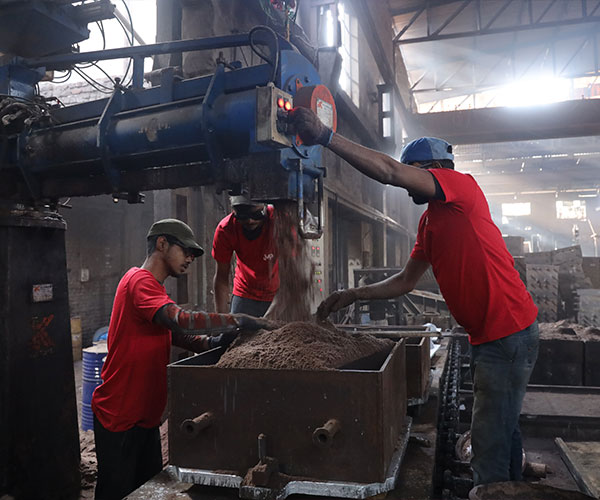

| Moulding Process | Green Sand, No-Bake and Shell Moulding System |
| Core Moulding | Cold Box, CO2, No-Bake and Shell Core making system |
| Weight | 0.2 Kg to 350 Kg |
| Plating/Painting | Spray Painting, Powder Coating, Zinc Plating, Hot Dip Galvanizing etc. according to customers requirements |
| Pattern | In house pattern making and maintenance |

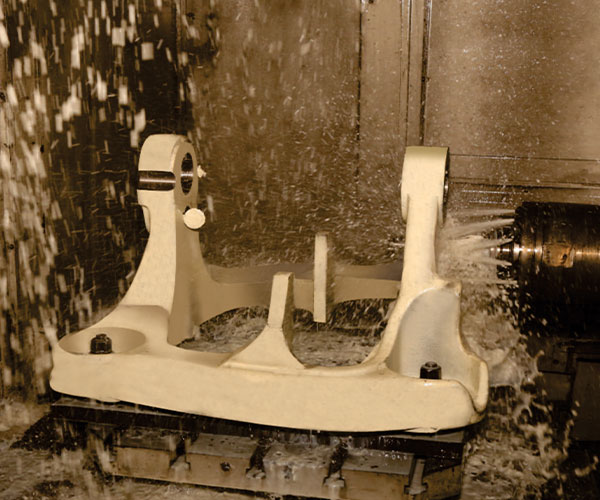

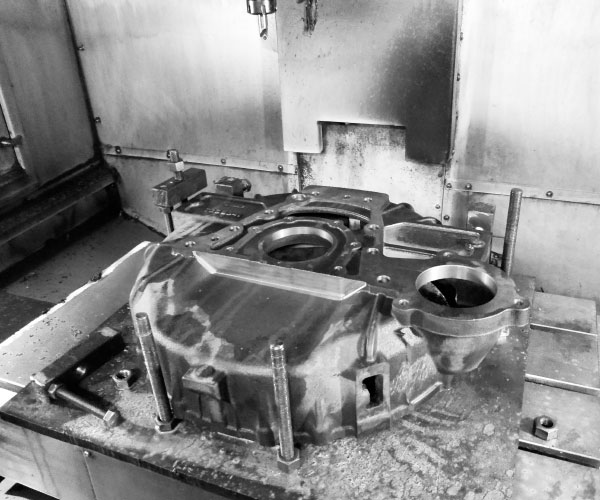

| Machining | State of the art machine shop with CNC Turning Centers, Vertical Machining Centers, Horizontal Machining Centers supported by conventional machines. |
| Quality Assurance |
ISO/TS:16949 Certified Company CMM machine to accurately measure the dimensions of machined components Fully equipped metallurgical laboratory with: 1. Spectro Analyzer to determine the chemical composition in metals 2. Universal Testing Machine to determine the tensile strength, elongation and prop stress in our products 3. M.P.I Tester to assure there are no hidden porosities/cracks 4. Micro Structure Analyzer to obtain a detailed view of the grain formation of the metal product 5. Hardness Tester to determine the hardness of the component |
